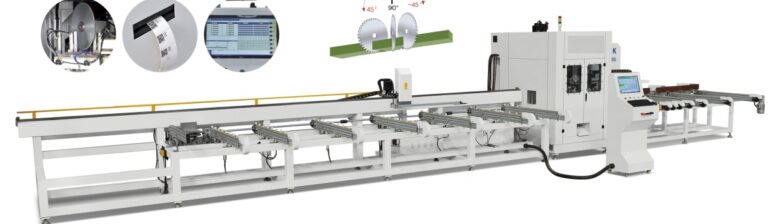

CNC saw cutting center for aluminum profiles

☆ The automatic loading workbench can continuously automatically hold profiles for cutting.

☆The moving part uses a high-precision linear conductor coil, which operates smoothly to ensure the accuracy of the loading.

☆The robotic movement uses imported high-precision gears and braces to ensure the accuracy of the transportation.

☆ The imported motor connects the sawblade directly, the cutting is smooth and the machining accuracy is high

☆The servo controls the saw-cutting motion to ensure the stable and reliable operation of the equipment

☆ Profile continuous finish ± 45 ° Or 90 ° Cutting, high processing efficiency

☆The enclosure is fully closed to ensure the safety of the operator

☆Optional bar code printer, set up E-WORK digital engineering system

☆ After the material is optimized with long-wind window optimization software, the system reads the material optimization data and performs cutting

☆ There is an automatic material discharge mechanism

☆ Equipped with protective nets

Technical parameters:

Power supply : 380V

Power : 16KW

Saw blade motor power : 3X3KW

Saw blade motor speed : 2840r / min

45 degree processing range: 100mm wide X130mm high 90mm 宽 *170mm

Working pressure : 0.5-0.8mpa

Length of high profile blank : 6000mm

90 degree processing range: 135mm wide X180mm high

Saw blade specifications : 500X30X120X4.4

Minimum cutting length : 350mm

Number of profiles stored in the feeding area : 7 pieces

Cutting profile length : 65000mm

X axis speed : 0-60m / min

A / B Axis Speed : 0-60mm / s

X axis feeding stroke : 7400mm

Z axis stroke : 0-80mm

Y axis stroke : 0-80mm

Dimensions : Length 14000 Width 2500 Height 2000mm

Introduction to the Sawing Center System

Our sawing center uses the first domestic intelligent manufacturing brand MTE MACHINES

The sawcutting center system developed by our company has the following characteristics:

1. Control system is independent, with high configuration and stable operation。By Intel Core2 CPU, 6 generation /10 Generation Core i5 Processor , Frequency 2.4GHz , DDR4G ， SSD 128G 。 Optimized software runs on the host and connects seamlessly.Compared with the industrial computer and PLC configuration system, the data processing is more timely and stable without delay, avoiding the “dead machine” phenomenon that other systems are prone to.

2. The control system adopts Ether CAT bus motion control, which can be connected to 256 axis multi-axis control； The system is based on Ether CAT bus IO expansion , can access high-speed IO expansion , ordinary DI / DO expansion, up to 32000 points； It can allow users to quickly implement intelligent saw-cutting automated flexible production lines, expanding manufacturing units such as punching, milling, and end milling. Reserve interfaces for units such as intelligent storage of materials for customers, digital workshop, and intelligent logistics distribution of workshop.

3 . The control system uses Microsoft ‘s original software , which has the advantages of lifelong security protection and free upgrade , laying the foundation for the subsequent digital workshop and intelligent manufacturing factory and avoiding intellectual property disputes .

4 . Relying on the strong R D capability of MTE MACHINES , the control system has the ability of continuous upgrading and is the best partner for customers to implement digital factory and realize smart manufacturing .

5 . The servo system adopts bus absolute value control , which can be remotely maintained and monitored .
