Aluminium Notching Cutting Saw Machine – Aluminium Curtain Wall & Skylights Industry MTE – 500NS
Curtain Wall Notching Milling Aluminium Notching Saw ,Aluminium Notching Saw Machine – Aluminium Curtain Wall And Skylights Industry , Aluminium Notch Cutting Saw,  Aluminium Notch Cutting Saw Manufacturer

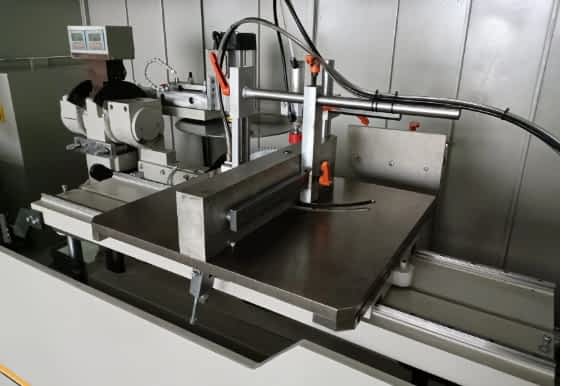

Aluminum Curtain Wall Notching Saw Machine

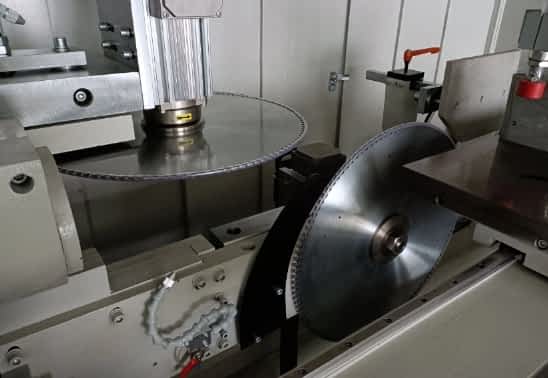

- Aluminium Notching Cutting Saw Machine machine is specialized design for Aluminium curtain wall and skylights industry.
- Curtain Wall Notching Milling Aluminium Notching Saw have the function of easy operation, reliable performance, advanced technology and easy maintenance.
-

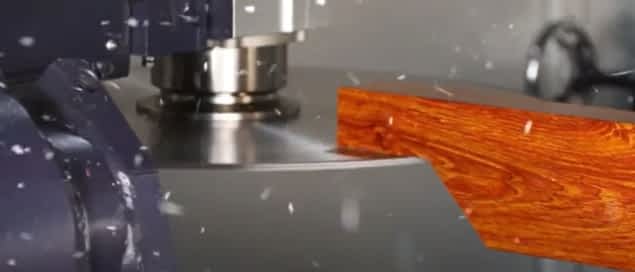

Curtain Wall Connecting Ending Cutting Saw Notching Machine for curtain wall machine is mainly used for end parts angle milling on Aluminium curtain wall and skylights profile.
- Aluminum Curtain Wall Notching Saw Machine Using carbide blade, fast cutting speed, high efficiency and high processing precision.
- Two saw heads work together, can be cut the needed angle on end profile at one time.
- Two blades can sawing within any range of +/-45 degree.
- Â Have magnetic scale control system, can display the cutting angle and work table height.
- Work-table and positioning device if easy to adjust.
Aluminium Notch Cutting Saw, China Aluminium Notch Cutting Saw Manufacturer, High Quality, Aluminium Notch Cutting Saw Supplier,Â
Input power 2*2.2KW
Power supply 380V/ 50Hz (According to clients need)
Air pressure 0.5~0.8MPa
Motor rotary speed 2800r/min
Saw Blade specification Φ500xΦ30×4.4 Z=120
Saw blade sawinging range +/-45°
Cutting depth Max 200mm
Cutting feeding speed 0~3m/min
Overall dimension 3250x1500x1800mm
Weight 1700kg
